It was a beautiful winter day on the ramp of the Portsmouth International Airport at Pease (PSM) in Portsmouth, NH.  A handful of us were watching FlightAware and listening to air traffic control on the radio.  Just over the buildings to our left, descending on short final, we caught our first glimpse…

We all watched as one of the world’s largest cargo planes touched down, slowed, and turned to taxi.  As it approached us, the size really became apparent.  This is one big airplane. And I was about to have one big AvGeek experience.

The Russian-made APU was whining loudly as we waited while the crew did their shut down.  After about five minutes, the crew emerged.  Once the last man got off the airplane, we were lead up the stairs and into the 120-foot-long by 21-foot-wide by 14-foot-high cargo area.  In case you’re wondering how big this is, imagine 42 Ford Explorer SUVs parked inside, three-abreast, 21-deep, and stacked two-high.  You would still have room to walk around.

Running along the ceiling of the interior cargo area are rails that hold two gantry cranes capable of lifting 30 tons. They are used to facilitate loading.  Cargo can also be trucked in and tied down using numbered slots on the wall which correspond to tie downs on the titanium floor.  This is used to position cargo for weight and balance purposes.  There is even a track system to bring cargo in like on a rail car, which can be pulled by winches if need be.

The flight deck is located on the upper level, which is accessible by a ladder and small hatch.  Once in flight, the cargo bay is not pressurized, much like the 747 Dreamlifter.  There is an aft crew cabin for the technical flight crew.  While there is a connection between the rear pressurized cabin, the front pressurized cockpit, and flight crew area, the tunnel itself is not pressurized and requires oxygen to make the journey.  It is not something typically done during flight unless absolutely necessary.  So, up we go…

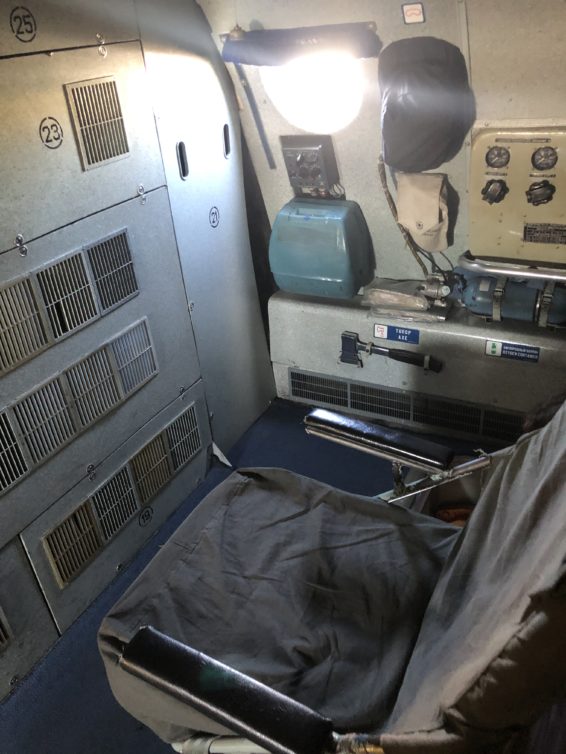

The first thing I noticed upon emerging on the upper side of the hatch is the “first class” seat, complete with a window.  This is the only passenger seat on board with a window.  Because the airplane is so heavy upon departure, the engines are spooled up for about five minutes to ensure stability.  Losing an engine on takeoff would be catastrophic.  The technical crew in the rear of the airplane will feel the engines spool up and the aircraft shake under power, but with no visual reference they really have no idea if they are in flight until they feel any slight turbulence on climb out.  They also have no idea they are back on the ground until the wheels touch.  I don’t know about you, but I can’t imagine how this must feel as a passenger.  I need my window!

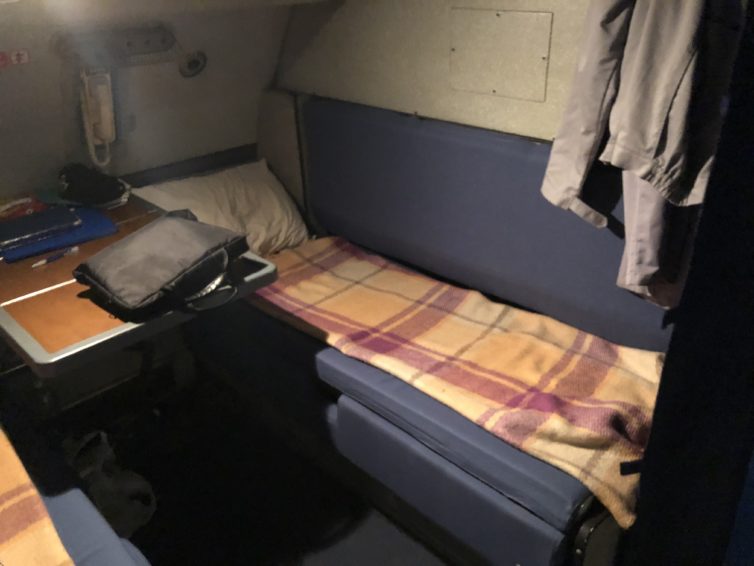

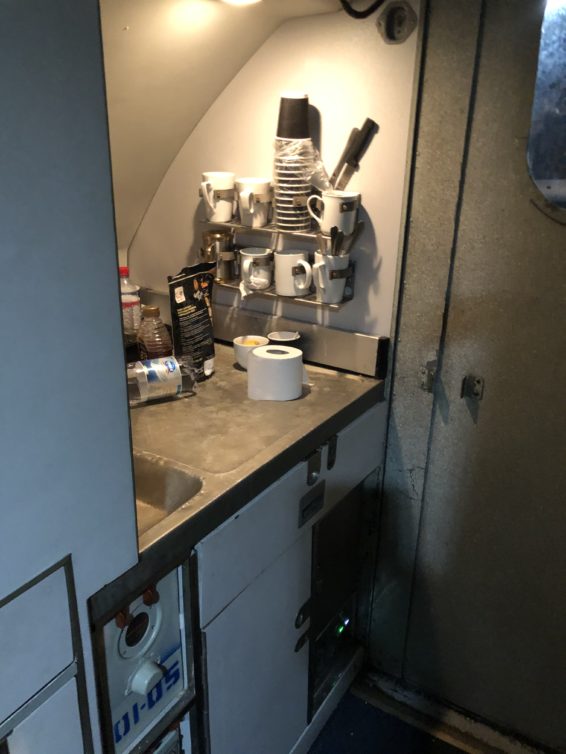

We were unable to get a look at the rear technical crew cabin, quite frankly because there are no cleaning crews or flight attendants to tidy things.  They didn’t want us to see any mess that might have been made during the seven-hour flight from Victorville.  That was understandable; I wouldn’t want to show off my house with it untidy.  It was okay, we got to check out the flight crew’s kitchenette and sleeping quarters.   Not quite the upper deck of a BA 747, but it does the job.

I wonder how many of you remember the Gilligan’s Island episode (yes, I’m dating myself), where Gilligan found an old Japanese sub from World War 2 and was going to drive it to Hawaii to rescue everybody.  The sub’s instrumentation was all in Japanese and he couldn’t figure anything out.  This is how I felt looking at this Russian-made cockpit.

This is not a Boeing, and it is far from an Airbus.  There are six stations, not counting relief pilots.  This is old school stuff.  Navigator, radio operator, weight and balance, load, pilot, copilot etc…  Taking a closer look at the flight deck, I felt lost.  I am pretty familiar with the modern aircraft cockpit.  I can name most switches, dials, and knobs and tell you what they all do.  I couldn’t even tell you how to start the APU in this airplane.

It was really cool though, sitting in the pilot’s seat of this beast.  Honestly, it felt like a 747. Well, except that I couldn’t read anything.

As we climbed back down, I turned to get one more close up shot of the 124, amazed by its size and beauty.  A few interesting facts about this airplane: there is no “hub” that they can fly to for repairs.  They carry pretty much everything they need to do repairs “on the road.”  They have a technical crew on board that handles loading and unloading, weight and balance etc…  And every person on board has an expertise.  One may be an expert on the gantry.  One on the hydraulics.  The crew chief on board knows pretty much everything about this airplane.  In other words, on the road they are very self sufficient.  They even carry spare tires should they need to replace one.

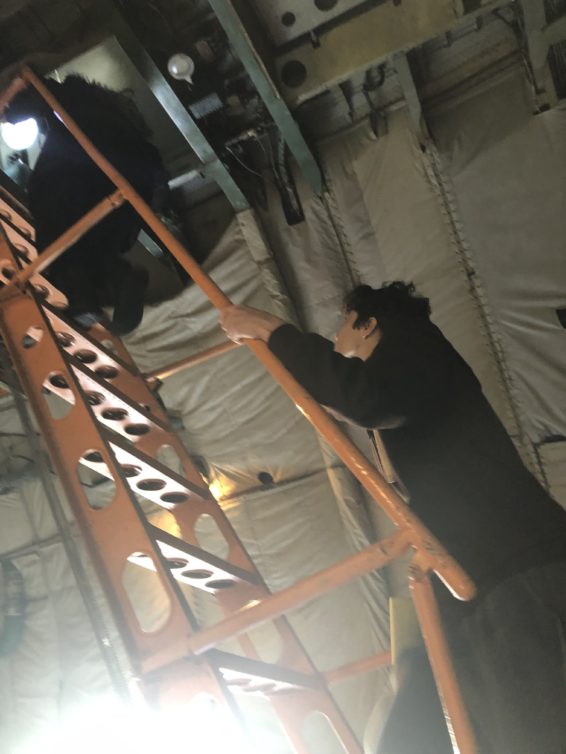

The airplane can hold 26,486 cubic feet in volume of cargo. It can fly 2,889 miles and requires 9,843 feet of runway holding nearly 132 tons of cargo.  It was an amazing opportunity to see this aircraft up close and I want to thank my friend Kate who made this happen.  I also want to thank the cargo team who gave us the tour and were so friendly and accommodating.  I was able to take my son along (he is the one climbing the latter in the photo above).  They gave him a model of the AN-124, and yes I was jealous.

This airplane is as impressive up close as it is from the spotter’s field of any local airport you may see it at.  Keep an eye out for it.  Who knows when it may be summoned to your local field to transport a new engine for some airline!
