Like most business travelers, I have grown accustomed to looking for the familiar WiFi symbol while boarding a plane. Just a few years ago, in-flight connectivity was a luxury and something one could not depend on, whether through spotty deployment across fleets, or because the cutting-edge technology delivering said connectivity wasn’t terribly reliable.

Over the years, however, following increased adoption among carriers, this luxury has morphed into something closer to a necessity. Business travelers like consistency, yet as comedian Louis CK accurately pointed out in one of his more popular skits amongst AvGeeks, we are more entitled than we should be. While I have grown increasingly dependent on connectivity, the underlying technology has always been a bit of a black box to me. You’ll be happy to know the hardware is in-fact encased in black boxes.

Some of the hardware required to power Gogo's IFC and IFE systems. Photo: JL Johnson

Some of the hardware required to power Gogo’s IFC and IFE systems – Photo: JL Johnson | AirlineReporter

I recently had the opportunity to catch up with the Gogo team at the Airline Passenger Experience Association (APEX) Expo in Portland to learn all about in-flight connectivity. For two days I mingled with PR folks, engineers, and even some of Gogo’s competitors in an attempt to get a solid understanding of IFC basics. Now that I have had a few days to digest the the technology and various initialisms, I’m excited to share what I learned.

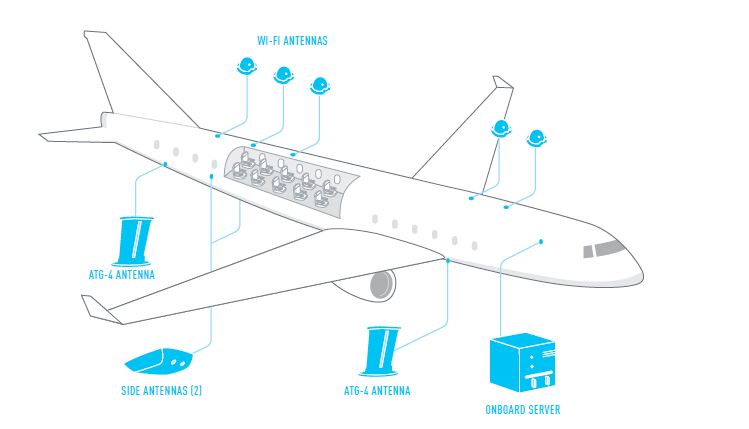

ATG Diagram courtesy of Gogo.

ATG Diagram – Image: Gogo

First, let’s examine the basics, as a variety of connectivity technologies exist on the market today. For the sake of simplicity, I’ll cover the most common.

Air-to-Ground (ATG and ATG-4)

This is the technology most domestic flyers are likely familiar with, and for good reason. For years it was the standard in the connectivity market. As the name suggests, ATG allows equipped planes to communicate with ground towers, over 160 of them in fact. The key here is that these are land-based, as opposed to satellites which we will discuss later. This is an early connectivity technology which Gogo has dominated since the FCC awarded them with exclusive use of key wireless frequency spectrum. Today there are over 2,000 ATG-equipped aircraft flying in North America.

ATG limitations include geographic restrictions — coverage includes the continental United States, as well as portions of Canada and Alaska. Additionally, speed maxes per plane are anticipated to run around 9.8 MBPS on those running the latest ATG (ATG-4) technology. Now, 9.8 MBPS isn’t bad, but when that starts being divvied up among numerous passengers the slice of the pie could dwindle. Thankfully Gogo and their airline partners prevent data-intensive traffic such as internet video streaming (like Netflix and HBO GO) as well as voice-over-internet (VoIP) calls. My experience with ATG has been generally positive over the years, with most of that experience being aboard Delta planes.

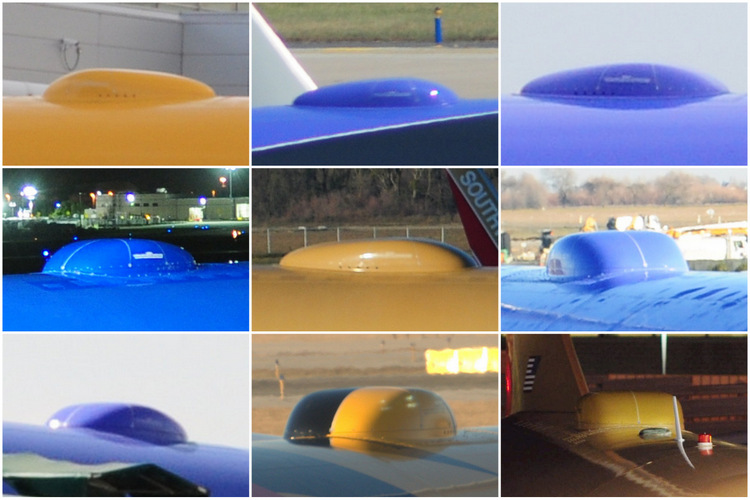

A variety of Southwest Airlines raydomes. Photos: JL Johnson

A variety of Southwest Airlines radomes – Photos: JL Johnson | AirlineReporter

Satellite Technologies: Ku and Ka

The two prevailing satellite connectivity offerings are Ku and Ka, each pronounced as two letters. I will spare the details, but a comparison between the two would be similar that of AM versus FM radio. A rough comparison for sure, but one that seems fair. (Satellite technologists, please don’t come after me!) Each has its positives and negatives, which I won’t detail here. Examples of Ku and Ka offerings in the wild include the Row-44 (Global Eagle) connectivity offered aboard Southwest Airlines (Ku) and Jetblue’s FlyFi, which is a Ka product from ViaSat/Thales. Gogo has their own Ku offering as well.

BONUS: SOUTHWEST AIRLINES’ BRING YOUR OWN DEVICE IN-FLIGHT ENTERTAINMENT

What is striking to me about many of these products is how bulbous they are. Pictured above are a number of “WiFi bumps” – known in the industry as radomes. Notice how imposing they are. When seen up close, they very much look like a hump on a camel’s back. Great for Wednesday #HumpDay photos, bad for fuel burn. Ryanair, an Irish Ultra-Low-Cost-Carrier (ULCC) recently announced a plan to introduce satellite connectivity within their fleet. The expense on top of up-front equipment sourcing and instillation costs? A 2% drag on efficiency, estimated to cost the company $23.6 million USD per year in additional fuel costs. I have read of similar efficiency hits among other carriers as well.

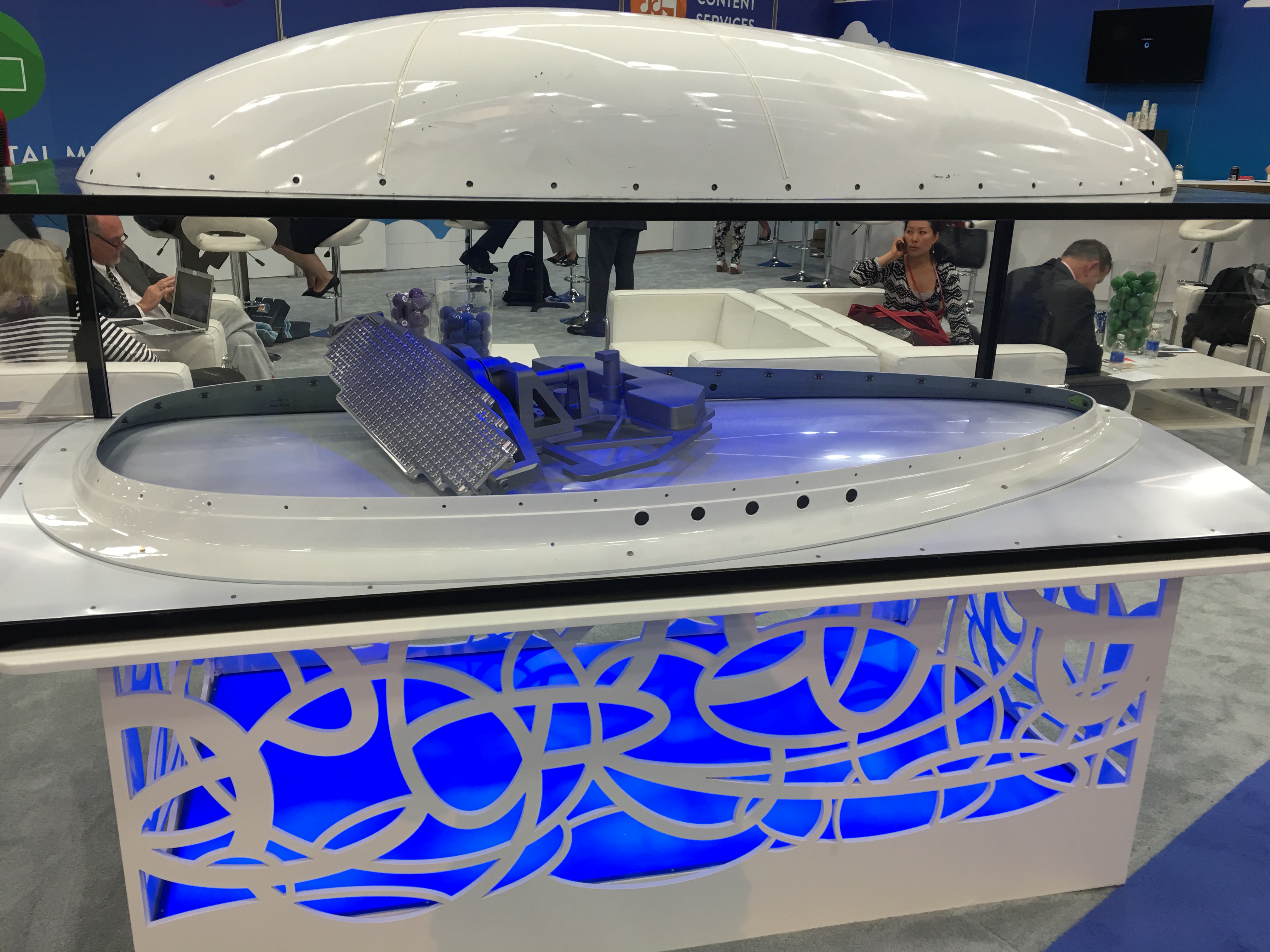

A look under a Global Eagle Ku radome.

A look under a Global Eagle Ku radome – Photo: JL Johnson

Next generation: Gogo’s 2Ku Technology

In the in-flight connectivity market, thin is in. Gogo is close to launching their new, award-winning 2Ku technology. 2Ku, as one might assume, uses dual Ku antennas. Gogo’s 2Ku offering is expected to run twice as fast as other Ku offerings.

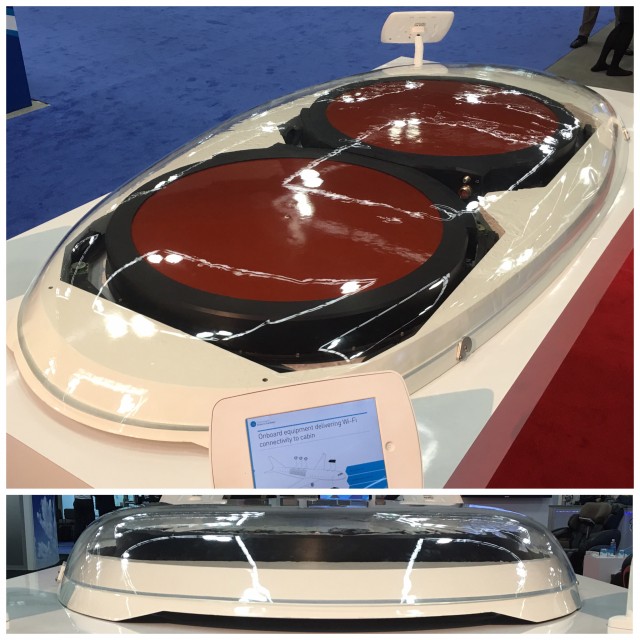

Full-scale model of Gogo's 2Ku offering. Photo: JL Johnson

Full-scale model of Gogo’s 2Ku offering – Photo: JL Johnson | AirlineReporter

Why does this product look more like a sleek dual pizza warmer than a traditional radome? The new technology built into Gogo’s 2Ku solution makes use of beam-forming (a concept used by some of the more advanced home WiFi routers) to aim signals electronically instead of relying on moving parts as seen by other products. The industry term for products which have moving parts is “gimbaled,” meaning they pivot on various axes. Aiming electronically means quicker response times, lower maintenance costs, and a thinner profile. In the case of Gogo’s 2KU radome versus other radomes on the market, roughly 50% thinner. Indeed, it was far thinner than the other radomes I saw on display at the APEX expo – and believe me, there were many. Sleeker profiles mean less fuel burn and lower overall ticket prices.

But let’s talk about what really matters. Is it fast? Gogo’s 2Ku offering is expected to deliver peak data speeds of around 70 MBPS, which is more than twice as fast as other Ku-based products on the market.

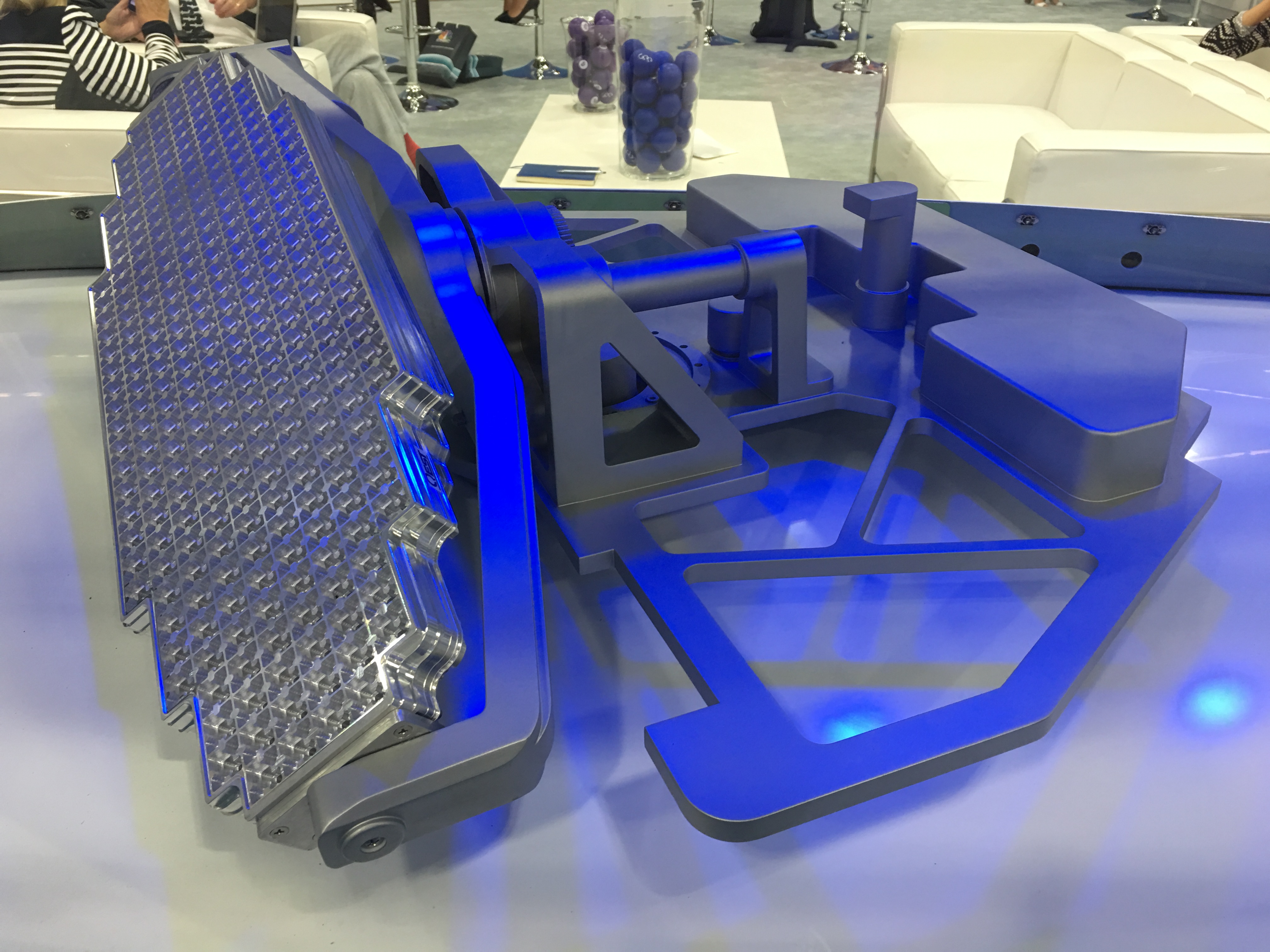

Expanded view of Global Eagle's single antenna Ku product. Photo: JL Johnson

Expanded view of Global Eagle’s single antenna Ku product – Photo: JL Johnson

2Ku is not currently available, but airlines are anxious to get on-board. When I spoke with Gogo last week, there were over 500 aircraft spread across a number of airlines lined up to receive the new technology once it becomes available later this year. 2Ku is currently in late trials aboard Gogo’s 737-500 testbed, and on most days that plane can be found flying around the central and eastern part of the U.S. on trials.

Aeromexico was the first airline to sign up for Gogo’s 2Ku and is expected to launch this year, followed by Virgin Atlantic. In 2016, Air Canada, Delta, United, and GOL will begin to receive their 2Ku products.

We are excited to follow the development of 2Ku, and the in-flight connectivity market as a whole, as it very quickly evolves. We hope to bring a story from aboard a Gogo 2Ku-equipped airplane in the very near future.

Disclosure: Travel and accommodations were provided by Gogo. Our opinions are always our own.
